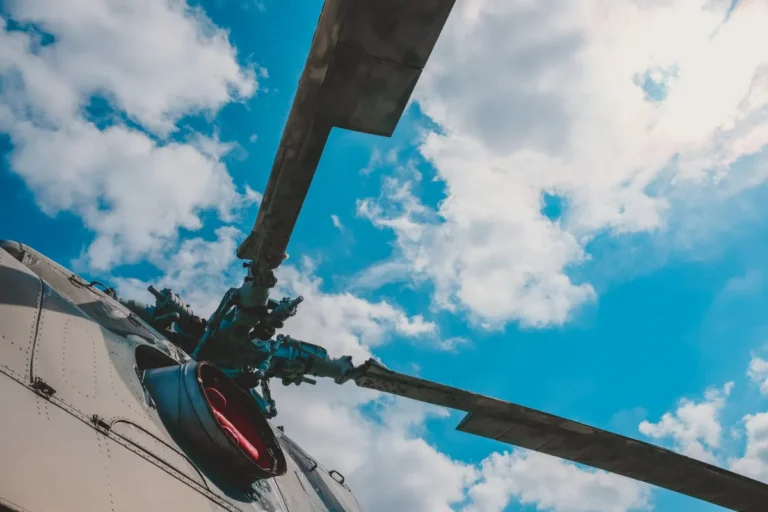

The CH-53 IBIS blade monitoring system is one of the most quietly ingenious engineering solutions in military aviation history: no batteries, no slip rings, no fragile electronics spinning at rotor-head speed, just a sealed capsule of radioactive strontium and a Geiger counter bolted inside the cabin. The CH-53 Sea Stallion entered service in 1966 as a heavy-lift helicopter designed to haul enormous loads, all of that weight suspended from six or seven rotor blades depending on the variant.
Why Rotor Blade Cracks Are So Difficult to Catch
Like a fixed-wing aircraft’s wing spar, the CH-53’s rotor blades rely on a central structural member to carry the load. Early versions used extruded aluminium spars; the CH-53D and later variants moved to cold-formed titanium. In both cases the engineering challenge was identical: detecting microscopic cracks before they propagate into a catastrophic blade failure.
The ground-level solution was elegant enough on its own. Each blade is sealed and pressurised with nitrogen gas, so any crack allows the gas to leak. A barber-pole pressure indicator on the blade lets a mechanic see at a glance whether pressure is holding. On the flight line, that works perfectly well. In the air, at cruise speed, over the ocean, it is entirely useless to the pilots.
What was needed was something equivalent to a tyre-pressure monitoring system: a sensor that trips a warning light in the cockpit the moment a blade begins losing pressure. The obvious approach, wiring electronic pressure sensors through the spinning rotor head via slip rings, would have been extraordinarily complex. Expecting wireless electronic components to survive the vibration, centrifugal loading and temperature swings of a rotor head in the early 1960s was not a realistic proposition either. Electronics of that era simply were not reliable enough.
CH-53 IBIS Blade Monitoring: The Nuclear Option
The solution that emerged was the Inflight Blade Monitoring System, known as IBIS. It works by modifying the same barber-pole pressure indicator already fitted to each blade. When blade pressure is normal, the indicator stays in its shielded position. When pressure drops, a mechanical action extends the indicator outward, and in doing so it exposes a small quantity of Strontium-90. Strontium-90 is a beta emitter, meaning it produces radiation that can be detected by a Geiger counter mounted inside the helicopter. The moment a blade cracks, the cockpit instrument registers the emission and alerts the crew.
According to the Federal Register (NRC), each IBIS device contains approximately 500 microcuries (18.5 MBq) of strontium-90 in the form of a rolled metal foil, encased in a stainless steel protective cylinder roughly the size of the press button on a ballpoint pen. The physical scale of the thing is easy to underestimate: something no larger than the end of a pen carries enough radioactive material to trip a Geiger counter reliably across the rotor disc.
The same NRC document details the radiation levels involved. In its normal, shielded configuration, the external dose rate is 0.8 milliröntgen per hour at three inches. In the failure (extended) mode, when the Sr-90 is exposed to alert the crew, the level rises to 75 mR/hr at 12 inches. For a ground crew member handling a blade, that matters: strontium-90 is relatively safe externally, but must not be inhaled or ingested, so the sealed stainless steel enclosure is not incidental to the design.
The Nuclear Regulatory Commission has formally licensed this arrangement. The Navy holds Master Materials Licence No. 45-23645-01NA, which authorises the Navy to possess and use these sealed sources across the fleet.
There are no batteries in the system. There are no electronics on the blade. The entire detection chain relies on a mechanical pressure indicator, a physically tiny sealed source, and a Geiger counter, components that require none of the signal conditioning, power management or wireless transmission that would have made an electronic solution so fragile in the 1960s, and which remain perfectly dependable now.
Still Flying, Still Counting Becquerels
The newest CH-53 variants have moved to all-composite rotor blades, and those use fibre optics to detect faults in the material. The older variants, however, still carry their barber-pole indicators and their ballpoint-pen-sized capsules of Strontium-90. The CH-53 IBIS blade monitoring approach has outlasted several generations of avionics, which says something about what happens when a mechanical solution is genuinely the right one. The NRC licence that governs those sealed sources, No. 45-23645-01NA, remains active.
